Giagabyte Server 1U UP ROME R152-Z30 4x 3.5'' HDD bay SATA 6Gb / SAS 12Gb 2x 650W 80+ Platinum

Giagabyte Server 1U UP ROME R152-Z30 4x 3.5'' HDD bay SATA 6Gb / SAS 12Gb 2x 650W 80+ Platinum

Giagabyte Server 1U UP ROME R152-Z30 4x 3.5'' HDD bay SATA 6Gb / SAS 12Gb 2x 650W 80+ Platinum





Giagabyte Server 1U UP ROME R152-Z30 4x 3.5'' HDD bay SATA 6Gb / SAS 12Gb 2x 650W 80+ Platinum

Towar dostępny na zamówienie
SKU
6NR152Z30MR-00

Giagabyte Server 1U UP ROME R152-Z30 4x 3.5'' HDD bay SATA 6Gb / SAS 12Gb 2x 650W 80+ Platinum

  • Single AMD EPYC™ 7002 series processor family
  • 8-Channel RDIMM/LRDIMM DDR4, 16 x DIMMs
  • 2 x 1Gb/s LAN ports (Intel® I350-AM2)
  • 1 x Dedicated management port
  • 4 x 3.5"/2.5" SATA hot-swappable HDD/SSD bays
  • Ultra-Fast M.2 with PCIe Gen3 x4 interface
  • 1 x PCIe Gen4 x16 expansion slot
  • 1 x OCP 2.0 Gen3 x16 mezzanine slot
  • Aspeed® AST2500 remote management controller
  • 650W 80 PLUS Platinum redundant power supply

R152-Z30 Product Overview

R152-Z30 System Block Diagram

PCIe Gen 4.0 Ready

AMD EPYC Rome is ready to support PCIe Gen 4.0 with a bandwidth of 64GB/s, twice that of PCIe Gen 3.0. This doubles the bandwidth available from the CPU to peripheral devices such as graphics cards, storage devices and high speed network cards. GIGABYTE’s AMD EPYC 7002 Series server platforms are ready to be used with a new generation of PCIe Gen 4.0 devices such as AMD’s Radeon MI50 GPGPU.

* The PCIe 4.0 standard supports a 16 GT/s bit rate, (roughly 2GB/s per single lane) as opposed to 8GT/s bit rate for PCIe 3.0 (1GB/s).

Higher Memory Speed

AMD EPYC’s Rome 7002 Series processors feature faster 8 channel DDR4 memory lanes, supporting RDIMM or LRDIMM memory modules with a speed of up to 3200MHz (1 DIMM per channel)

Get the Memory Performance Edge

3200Mhz Even at 2 DIMMS Per Channel

On previous AMD server platforms, memory speed has been automatically downgraded by design when a user installed two DIMMs per channel. GIGABYTE has now developed a unique solution to overcome this performance downgrade headache: with our new 2nd Generation AMD EPYC 7002 Series server platforms, maximum memory speed (3200Mhz) is now supported even when using 2 DIMMS per channel*. GIGABYTE’s server platforms give you the performance edge, with more memory capacity at faster speeds than competing solutions!

* Enabled via BIOS setting (“UMC Common Options” “DDR4 Common Options” Configure “Enforce POR” setting). Please follow product QVL. Please consult your GIGABYTE sales or technical representative for more information.

More M.2 Storage

GIGABYTE’s AMD EPYC 7002 Series server platforms feature more M.2 drive capacity for ultra-fast NVMe storage – both onboard M.2 slots and extra capacity via optional riser cards.

Max TDP Support

GIGABYTE’s AMD EPYC server platforms come ready to support the full list of AMD EPYC 7002 Series processors: up to 225W (standard TDP) / 280W (cTDP)

Data Security

TPM 2.0 Module

GIGABYTE’s AMD EPYC Server is designed to support Trusted Platform Modules (TPM - discrete cryptographic on-board processors).

Carefully Selected Components

GIGABYTE’s passive components are carefully selected to guarantee a stable operating environment and allow the processors and the memory to deliver their maximum performance. GIGABYTE’s server motherboards are built with long lasting components for a high degree of reliability and durability.

Design Features for Easy Maintenance

GIGABYTE’s AMD EPYC 7002 Series server platforms contain many tool less design features for easy installation, maintenance and removal – never worry about forgetting your toolbox or losing a screw again!

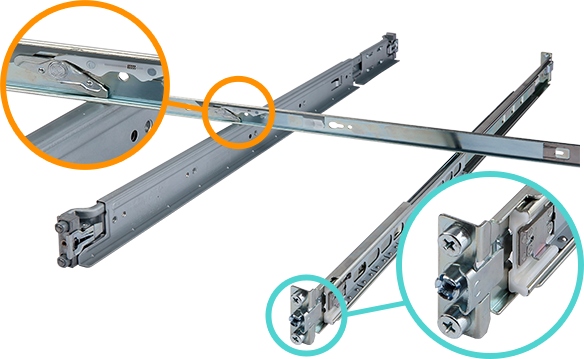

Tool-less Rail Kits

Rail kits attach to the side of the server chassis via clipping mechanism.

Tool-less 2.5” & 3.5” Drive Bays

Clipping mechanism secures the drive in place. Install or replace a new drive in seconds.

Efficient, Reliable Power Supply

GIGABYTE’s AMD EPYC 7002 Series server are designed to guarantee high conversion efficiency regardless of load. Redundant 80 Plus ‘Titanium’ or ‘Platinum’ PSUs, combined with GIGABYTE’s precision engineering, translates to super efficient power usage which maximizes the system’s power : performance ratio and reduces OPEX for the user.

Dynamic Fan Speed Control

GIGABYTE servers are enabled with dynamic fan speed adjustment. Individual fan speed will be automatically adjusted according to the system’s current temperature (according to CPU, DIMM, M.2, HDD, GPU temperature sensors), to achieve the best cooling and power efficiency. When the BMC detects a temperature change, fan speed will be automatically adjusted accordingly. Fan speed profiles may also be manually created and edited* when necessary according to the user’s custom requirements.

* Enabled on selected models & performed through BMC console management GUI

Environmental Compliance

GIGABYTE maintains its commitment to green products, and adheres to the latest RoHS regulations (in effect July 2017).

VMware Technology Alliance Partner

Being a member of VMware's Technology Alliance Partner (TAP) program enables GIGABYTE to rapidly develop and certify joint solutions or go-to-market products that leverage VMware virtualization and cloud solutions, enabling our customers to modernize their data centers and implement IT infrastructure and application services with speed, agility, and cost optimization.

Enquire with your GIGABYTE sales representative for more information about combining or integrating this server product with VMware solutions.

Więcej informacji
Rozmiar obudowy 1U Rack
Procesor CPU AMD EPYC™
Producent Procesora AMD
podstawka procesora SP3
Chipset SoC
ILOŚĆ PROCESORÓW 1xCPU
ilość slotów pamięci 16 DIMM slots
Typ pamięci DDR4 DIMM
Standard pamięci DDR4-3200 MHz
interfejs SSD/HDD PCIe 3.0 x4/x8, SATA
rozmiar kieszeni hdd/ssd 3.5 (LFF)
kieszenie 2.5'' 4
kieszenie 3.5'' 4
złącza M.2 2
moc zasilaczy 650W
ceryfikaty zasilaczy 80 plus Platinum
redundancja zasilaczy tak
Gwarancja 1 rok
