Gigabyte G262-ZO0 HPC Server - 2U Dual AMD EPYC™ 7003 4 x AMD Instinct MI250 OAM GPU 3000W

G262-ZO0  (rev. A00)

HPC Server - 2U DP AMD OAM 4 GPU Server  | Application: AI ,  AI Training ,  AI Inference  &  HPC

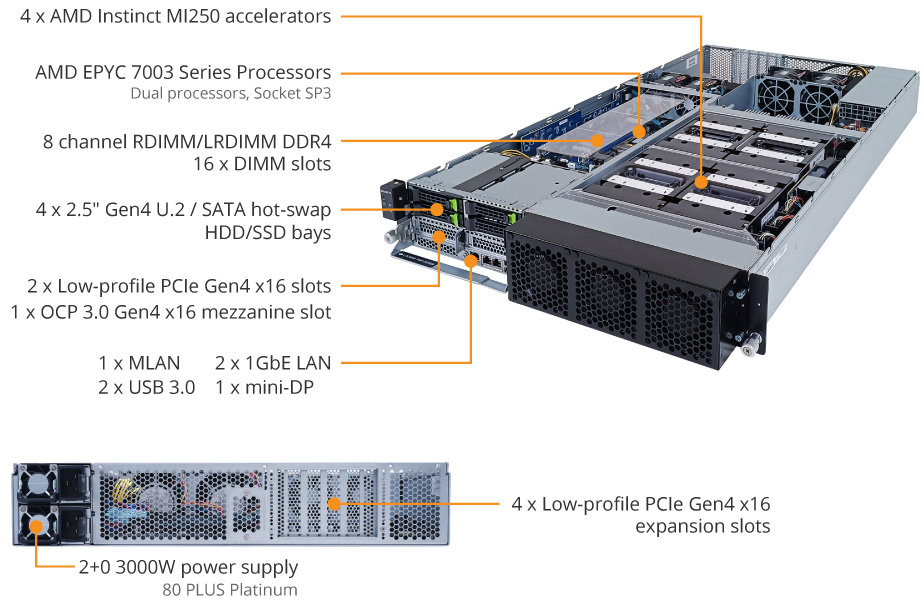

Supports 4 x AMD Instinct™ MI250 OAM GPU modules
Supports AMD Infinity Fabric Links technology
AMD EPYC™ 7003 processors with AMD 3D V-Cache™ Technology
Dual AMD EPYC™ 7003 series processor family
8-Channel RDIMM/LRDIMM DDR4 per processor, 16 x DIMMs
2 x 1Gb/s LAN ports (Intel® I350-AM2)
1 x dedicated management port
4 x 2.5" Gen4 U.2 NVMe/SATA/SAS hot-swappable HDD/SSD bays
Ultra-Fast M.2 with PCIe Gen4 x4 interface
6 x Low profile Gen4 x16 expansion slots
1 x OCP 3.0 Gen4 x16 mezzanine slot
3000W 80 PLUS Platinum redundant power supply

Pre-installed with 4 x AMD MI250 OAM GPU modules
- 128GB HBM2e Memory per OAM module
- Up to 6x GPU-GPU Infinity Links at 25Gbps

2nd Generation AMD CNDA™ Architecture
The AMD Instinct™ MI200 series accelerator brings customers the
compute engine selected for the first U.S. Exascale supercomputer.
Powered by the 2nd Generation AMD CDNA™ architecture, the MI200
series accelerators deliver a quantum leap in HPC and AI performance
over competitive data center GPUs today. The AMD Instinct MI200
series GPU delivers industry-leading double precision performance
for HPC workloads with up to 47.9TFLOPS peak FP64 performance,
enabling scientists and researchers across the globe to process HPC
parallel codes more efficiently across several industries.1
AMD’s Matrix Core technology delivers a full range of mixed precision
operations bringing you the ability to work with large models and
enhance memory-bound operation performance for whatever
combination of AI and machine learning workloads you need to deploy.
The MI200 offers optimized BF16, INT4, INT8, FP16, FP32, and FP32
Matrix capabilities bringing you supercharged compute performance
to meet all your AI system requirements. The AMD Instinct MI200
accelerator handles large data efficiently for training and is the first
data center GPU to deliver 383 teraflops of peak FP16 performance for
deep learning training.

AMD Infinity Fabric™ Link Technology
AMD Instinct MI200 series OAM accelerators with advanced peer-
to-peer I/O connectivity through a maximum of eight AMD Infinity
Fabric™ links deliver up to 800 GB/s I/O bandwidth performance.3
With a cache coherency enabled solution using Optimized 3rd Gen
AMD EPYC™ CPU and MI250X accelerators, Infinity Fabric unlocks
the promise of unified computing, enabling a quick and simple on-
ramp for CPU codes to accelerated platforms.
Ultra-Fast HBM2e Memory
The AMD Instinct™ MI200 accelerators provide up to 128GB High-
bandwidth HBM2e memory with ECC support at a clock rate of 1.6
GHz. and deliver an ultra-high 3.2 TB/s of memory bandwidth to
help support your largest data sets and eliminate bottlenecks in
moving data in and out of memory.2 Combine this performance with
the MI200’s advanced I/O capabilities and you can push workloads
closer to their full potential

Nothing Stacks Up To EPYC™

AMD EPYC™ 7003 Processors with AMD 3D V-Cache™

AMD EPYC 7003 Series Processors with AMD 3D V-Cache™ technology are raising the bar once more for breakthrough performance on targeted technical computing workloads like Electronic Design Automation, Computational Fluid Dynamics, and Finite Element Analysis software and solutions. Delivering breakthrough performance per core and performance per watt, the Zen 3 architecture maintains leadership in number of cores – up to 64, amount of L3 cache – 768MB, and 128 PCIe 4.0 lanes, while maintaining socket compatibility with existing 3rd Gen AMD EPYC

High Performance

Supports AMD Instinct™ MI250 Accelerator

Massive datasets and complex simulations require multiple GPUs with extremely fast AMD Infinity Fabric™ links amongst GPUs and fast PCIe 4.0 links between CPU and GPU. The OAM form factor combines AMD Instinct™ MI250 accelerators with high-speed interconnects to define the world’s most powerful servers.

Maximize Throughput and Efficiency with First Multi-Die GPU
AMD Instinct™ accelerators are the industry’s first accelerators engineered as a multi-chip GPU package with a state-of-the-art fabric designed with 3rd Gen AMD Infinity Fabric™ technology to enable massive data throughput intelligently at ultra-high speeds for HPC and AI.

Hardware Security

Optional TPM 2.0 Module

For hardware-based authentication, the passwords, encryption keys, and digital certificates are stored in a TPM module to prevent unwanted users from gaining access to your data. GIGABYTE TPM modules come in either a Serial Peripheral Interface or Low Pin Count bus.

Power Efficiency

Automatic Fan Speed Control

GIGABYTE servers are enabled with Automatic Fan Speed Control to achieve the best cooling and power efficiency. Individual fan speeds will be automatically adjusted according to temperature sensors strategically placed in the servers.

High Availability

Smart Crises Management and Protection (SCMP)

SCMP is a GIGABYTE patented feature which is deployed in servers with non-fully redundant PSU design. With SCMP, in the event of faulty PSU or overheated system, the system will force the CPU into an ultra-low power mode that reduces the power load, which prevents the system from unexpected shutdown and avoids component damage or data loss.

Smart Ride Through (SmaRT)

To prevent server downtime and data loss as a result of loss of AC power, GIGABYTE implements SmaRT in all our server platforms. When such an event occurs, the system will throttle while maintaining availability and reducing power load. Capacitors within the power supply can supply power for 10-20ms, which is enough time to transition to a backup power source for continued operation.

User Friendly

Certified Ready with Software Partners

Being a member of key software alliance partner programs enables GIGABYTE to rapidly develop and validate joint solutions, enabling our customers to modernize their data centers and implement IT infrastructure and application services with speed, agility, and cost optimization.

OCP 3.0 Ready

GIGABYTE offers servers that feature an onboard OCP 3.0 slot for the next generation of add on cards. Advantages of this new type include:

• Easy Serviceability:
  Simply slot in or pull out the card, without opening the server or using tools
• Improved thermal design:
  Horizontal position and optimal heat sink design allow for air cooling to eliminate the heat efficiently

GIGABYTE Management Console

For management and maintenance of a server or a small cluster, users can use the GIGABYTE Management Console, which is pre-installed on each server. Once the servers are running, IT staff can perform real-time health monitoring and management on each server through the browser-based graphical user interface. In addition, the GIGABYTE Management Console also provides:

• Support for standard IPMI specifications that allows users to integrate services into a single platform through an open interface
• Automatic event recording, which can record system behavior 30 seconds before an event occurs, making it easier to determine subsequent actions
• Integrate SAS/SATA/NVMe devices and RAID controller firmware into GIGABYTE Management Console to monitor and control Broadcom® MegaRAID adapters.

Dimensions (WxHxD, mm)
2U
448 x 86.8 x 850
Motherboard
MZ62-HD5 Rev. 3.0
CPU
AMD EPYC™ 7003 processors with AMD 3D V-Cache™ Technology
AMD EPYC™ 7003 series processor family
Dual processors, 7nm technology
Up to 64-core, 128 threads per processor
cTDP up to 280W

NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable

Compatible with AMD EPYC™ 7002 series processor family
Socket
Socket SP3
Chipset
System on Chip
Memory
16 x DIMM slots
DDR4 memory supported only
8-Channel memory per processor architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
Memory speed: Up to 3200/2933 MHz
LAN
Front Side:
2 x 1GbE LAN ports (1 x Intel® I350-AM2)
1 x 10/100/1000 management LAN
Video
Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
Audio
N/A
Storage
4 x 2.5" Gen4 U.2 NVMe/SATA/SAS hot-swappable HDD/SSD bays

SAS card is required for SAS devices support
SAS
Depends on optional SAS Card
RAID
Depends on optional SAS Card
Peripheral Drives
N/A

Expansion Slots
Pre-installed with 4 x AMD MI250 OAM GPU modules
- 128GB HBM2e Memory per OAM module
- Up to 6x GPU-GPU Infinity Links at 25Gbps

Total 6 x Low profile Gen4 x16 expansion slots
- Front Side: 2 x Low profile Gen4 x16 expansion slots
- Rear Side: 4 x Low profile Gen4 x16 expansion slots

1 x OCP 3.0 mezzanine slot with PCIe Gen4 x16 bandwidth from CPU_0
Supported NCSI function by onboard NCSI_SW

1 x M.2 slot: (Onboard)
- M-key
- PCIe Gen4 x4
- Supports 2280/22110 cards

2 x M.2 slots: (From CMTP072)
- M-key
- PCIe Gen4 x4
- Supports 2242/2260/2280/22110 cards

Internal I/O
1 x TPM header
1 x Front panel header
Front I/O
2 x USB 3.0
1 x mini-DP
2 x RJ45
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x System status LED
1 x HDD access LED
Rear I/O
N/A
Backplane I/O
4 x 2.5" NVMe/SATA hybrid ports
Speed and bandwidth: PCIe Gen4 or SATA 6Gb/s
TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
Power Supply
2‎ x 3000W redundant power supply
80 PLUS Platinum

AC Input:
- 115-127V~/ 14.2A, 50-60Hz
- 200-240V~/ 15.8A, 50-60Hz

DC Input:
- 240Vdc/ 14A

DC Output:
- Max 1200W/ 100-127V~
+ 54V/ 95.6A
+ 12Vsb/ 3.5A
- Max 3000W/ 200-240V~
+ 54V/ 178.1A
+ 12Vsb/ 3.5A

NOTE: The system power supply requires C19 type power cord

System Management
Aspeed® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage/Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings
OS Compatibility
Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Windows Server 2022

Red Hat Enterprise Linux 8.3 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later

SUSE Linux Enterprise Server 12 SP5 (x64) or later
SUSE Linux Enterprise Server 15 SP2 (x64) or later

Ubuntu 18.04.5 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
Ubuntu 22.04 LTS (x64) or later

VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later

Citrix Hypervisor 8.2.0 or later
System Fans
2 x 60x60x76mm (21,700rpm)
5 x 80x80x80mm (17,000rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions
1135 x 685 x 304 mm
Packaging Content
1 x G262-ZO0
2 x CPU fan-sinks
1 x Rail kit
Part Numbers
- Barebone with rail kit: 6NG262ZO0MR-00-A00
- Motherboard: 9MZ62HD5NR-00
- Rail kit: 25HB2-A86102-K0R
- CPU fan-sink: 25ST1-3532G0-M1R/25ST1-3532G1-M1R
- Back plane board_2-port: 9COBP540NR-00
- Front panel board: 9CFP1000NR-00
- Fan module: 25ST2-667630-S1R/25ST2-808034-S1R/25ST2-808035-S1R
- Power supply: 25EP0-230003-D0S
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R (optional)
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R (optional)
- Mini-DP to D-Sub cable: 25CRN-200801-K1R (optional)
