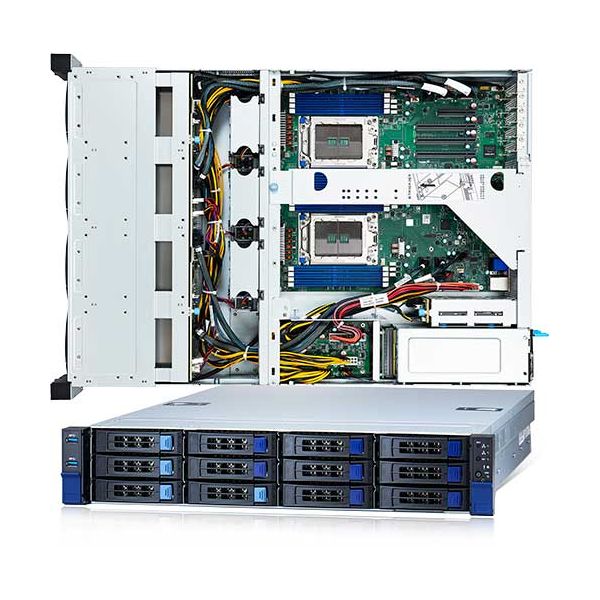

2U2S Storage Server (12) 3.5''/2.5'' Hot-swap HDD/SSD + (2) 2.5'' Hot-swap HDD/SSD (2) GbE + (2) 10GbE + (1) GbE dedicated for IPMI (1+1) 1200W CRPS 80+P
2U2S Storage Server, 10 SATA + 4 NVMe U.2/SATA
System | Form Factor | 2U Rackmount |
Chassis Model | TS65 | |
Dimension (D x W x H) | 25.59" x 17.32" x 3.43" (650 x 440 x 87mm) | |
Motherboard Name | S8253GM4NE-2T | |
Gross Weight | 30 kg (66 lbs) | |
Net weight | 19 kg (42 lbs) | |
Front Panel | Buttons | (2) UID / (1) PWR w/ LED / (1) RST |
LEDs | (1) UID / (2) LAN / (1) System Event | |
I/O Ports | (2) USB 3.1 Gen.1 ports | |
External Drive Bay | Q'ty / Type | (2) 2.5" Hot-Swap HDD/SSDs (@ rear) / (12) 3.5 Hot-Swap HDD/SSDs (@ front) |
Front Drive Bay Interface | (12) SATA 6Gb/s with (4) NVMe ports (@ front) | |
Front HDD Backplane Support | SAS 12Gb/s /SATA 6Gb/s /NVMe | |
Rear Drive Bay Interface | (2) SATA 6Gb/s | |
Rear HDD Backplane Support | SATA 6Gb/s | |
Notification | The SAS/SATA HDD backplane is connected to onboard SATA connection by default. Please contact Tyan technical support if a discrete SAS HBA/RAID adapter is required. | |
System Cooling Configuration | FAN | (3) 8cm fans |
Power Supply | Type | CRPS |
Input Range | AC 100-127V/13A / AC 200-240V/7A | |
Frequency | 50-60 Hz | |
Output Watts | 1,000 Watts (100-127V AC input) / 1,200Watts (200-240V AC input) | |
Efficiency | 80 plus Platinum | |
Redundancy | 1+1 | |
Processor | Q'ty / Socket Type | (2) AMD Socket SP3 |
Supported CPU Series | (2) AMD EPYC™ 7002/7003 (with AMD 3D V-Cache™ Technology) Series Processor | |
Thermal Design Power Wattage | Max up to 240W (cTDP) | |
Memory | Supported DIMM Qty | (8)+(8) DIMM slots |
DIMM Type / Speed | DDR4 ECC RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 3200 | |
Capacity | Up to 1,024GB RDIMM / 4,096GB LRDIMM 3DS | |
Memory channel | 8 Channels per CPU | |
Memory voltage | 1.2V | |
Expansion Slots | PCIe | (1) PCIe Gen.4 x8 slot (Low Profile) / (2) PCIe Gen.4 x8 slots (FH/HL) / (1) PCIe Gen.4 x16 slot (FH/HL) / (3) PCIe Gen.4 x16 slots (Low Profile) |
Pre-installed TYAN Riser Card (PCIe Gen.4) | (1) M8253T65-R32-3F riser card for (2) FH/HL PCIe Gen.4 x8 slot and (1) FH/HL PCIe Gen.4 x16 slot (right) | |
Physical Dimension Abbreviation | FH/HL (Full-height / Half-length): 4.4" x 6.6" (111.2 x 167.7mm) | |
LAN | ||
Q'ty / Port | (2) 10GbE ports + (2) GbE ports + (1) GbE dedicated for IPMI | |
Controller | Intel I210 / Intel X550 | |
PHY | Realtek RTL8211E | |
Storage SATA | Connector | (2) 7-pin SATA 6G ports / (2) 7-pin White SATA 6G ports w/ Power conn. support SATA-DOM / (3) Mini-SAS HD (12 ports) |
Controller | Direct from AMD EPYC CPU | |
Speed | 6Gb/s | |
RAID | N/A | |
Storage NVMe | Connector (U.2) | (2) SFF-8654 for (4) NVMe ports |
Graphic | Connector type | D-Sub 15-pin |
Resolution | Up to 1920x1200 | |
Chipset | Aspeed AST2500 | |
I/O Ports | USB | (1) USB3.1 Gen.1 port (via Cable) / (1) USB3.1 Gen.1 port (Type-A) / (2) USB3.1 Gen.1 ports (@ rear) |
COM | (1) DB-9 port (COM1) | |
VGA | (1) D-Sub 15-pin port | |
RJ-45 | (2) 10GbE ports + (2) GbE ports + (1) dedicated GbE for IPMI | |
TPM (Optional) |
TPM Support | Please refer to our TPM supported list. |
System Monitoring | Chipset | Aspeed AST2500 |
Temperature | Monitors temperature for CPU & memory & system environment | |
Voltage | Monitors voltage for CPU, memory, chipset & power supply | |
LED | Over temperature warning indicator / Fan & PSU fail LED indicator | |
Others | Watchdog timer support | |
Server Management | Onboard Chipset | Onboard Aspeed AST2500 |
AST2500 iKVM Feature | 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub | |
AST2500 IPMI Feature | IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface | |
BIOS | Brand / ROM size | AMI / 32MB |
Feature | Hardware Monitor / FAN speed control automatic / Boot from USB device/PXE via LAN/Storage / Console Redirection / SMBIOS 3.0/PnP/Wake on LAN / ACPI 6.1 / ACPI sleeping states S0, S5 | |
Operating System | OS supported list | Please refer to our AVL support lists. |
Regulation | FCC (SDoC) | Class A |
CE (DoC) | Class A | |
CB/LVD | Yes | |
RCM | Class A | |
VCCI | Class A | |
Operating Environment | Operating Temp. | 10° C ~ 35° C (50° F~ 95° F) |
Non-operating Temp. | - 40° C ~ 70° C (-40° F ~ 158° F) | |
In/Non-operating Humidity 90 | 90%, non-condensing at 35° C | |
Package Contains | Barebone | (1) TS65-B8253 Barebone |
Manual | (1) Quick Installation Guide | |
RoHS | RoHS 6/6 Compliant | Yes |
Rozmiar obudowy | 2U Rack |
---|---|
Procesor CPU | AMD EPYC™ |
podstawka procesora | SP3 |
Chipset | SoC |
ILOŚĆ PROCESORÓW | 2xCPU |
ilość slotów pamięci | 16 DIMM slots |
Typ pamięci | DDR4 DIMM |
Standard pamięci | DDR4-3200 MHz |
ilość GPU/HPC | 2 |
interfejs SSD/HDD | PCIe 3.0 x4/x8, SATA |
rozmiar kieszeni hdd/ssd | 3.5 (LFF) |
kieszenie 2.5'' | 2 |
kieszenie 3.5'' | 12 |
złącza M.2 | 2 |
SAS Expander | n/a |
moc zasilaczy | 1600W |
ceryfikaty zasilaczy | 80 plus Platinum |
redundancja zasilaczy | tak |
Gwarancja | 3 lata |
